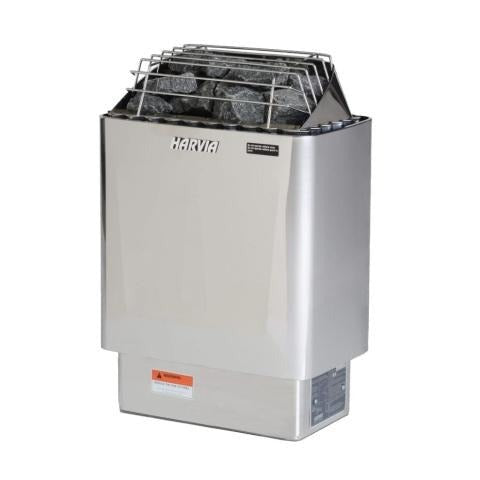

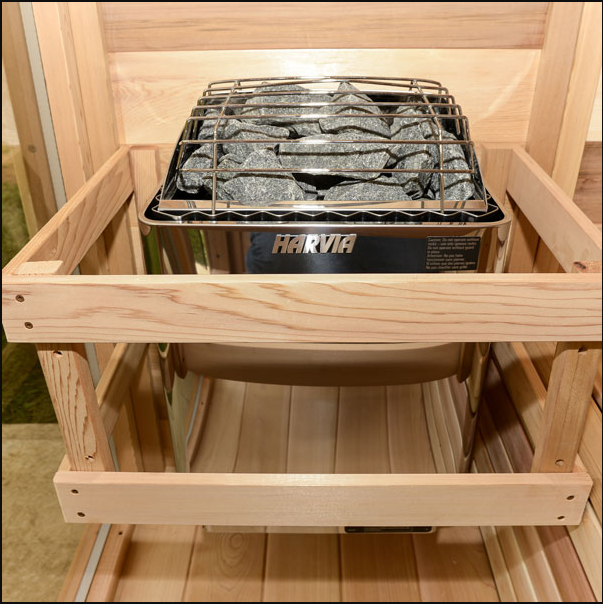

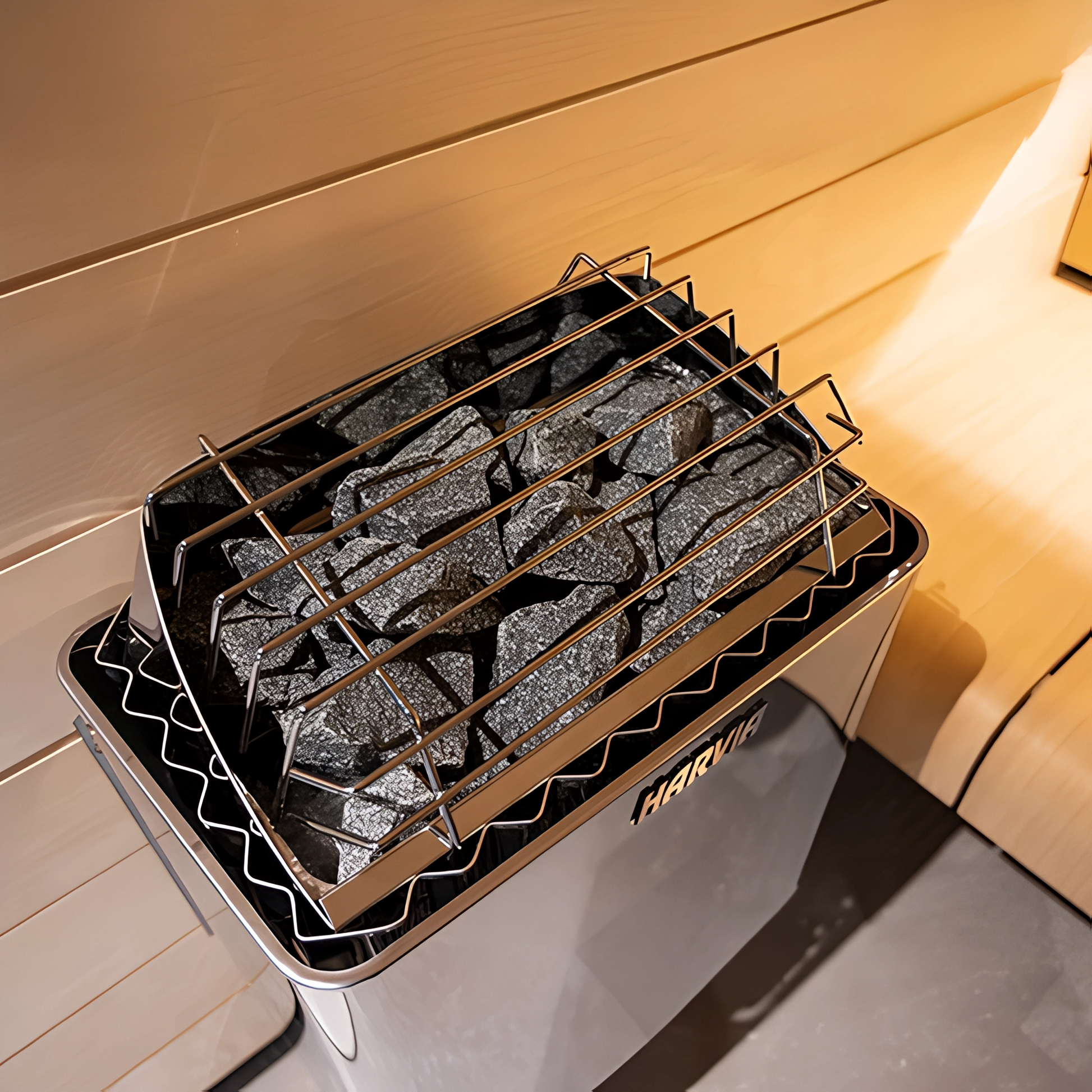

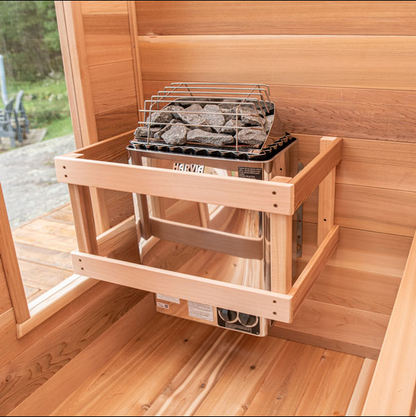

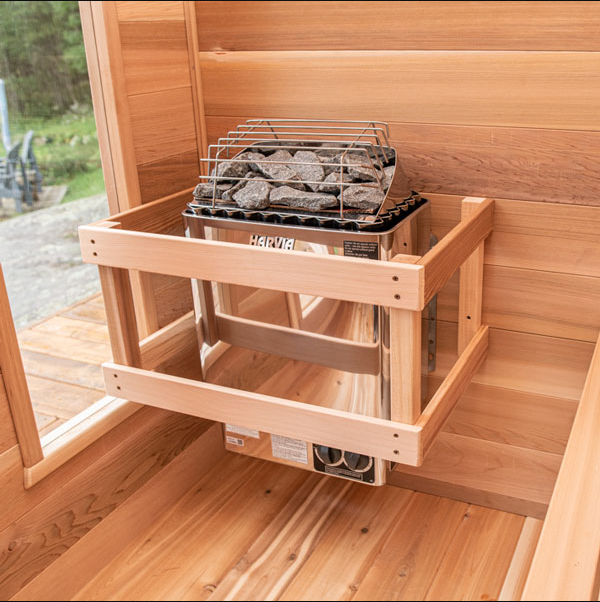

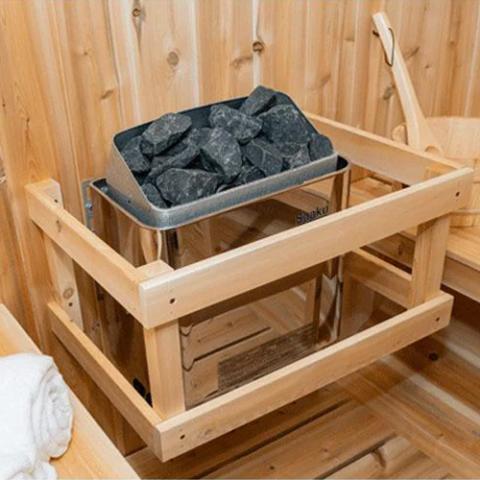

The Harvia KIP60W electric sauna heater is engineered for home saunas up to 300 cubic feet (CF).
The wall-mounted KIP60W sauna heater generates a satisfying, penetrating heat. The unit features industrial-grade, stainless-steel heating elements, and corrosion-resistant stainless components. Its large rock capacity provides optimal heat storage.
The KIP60W is designed so that rocks are in direct contact with the heating elements, resulting in a more even and consistent heat. The sauna heating unit features triple-wall construction which provides lower surface temperatures and added safety.
When you buy a sauna, quality and value are important. In the rich tradition of authentic Finnish saunas, the KIP60W is engineered for years of safe and reliable operation.
The KIP60W electric sauna stove provides a traditional sauna experience by blanketing the room with intense heat. The unit is perfect for any home sauna kit.
The Harvia KIP60W heater is available in 240V, single-phase (1PH), and 208V, three-phase (3PH) configurations.
This heater comes with 2 boxes of stones.
FEATURES:
- Wall-mounted
- Stainless steel construction
- 6kW
- For sauna rooms from 170 to 300 cu. ft.
- Requires a minimum of 50lbs of stones (1 box-AC3000)
- Please note that each natural stone is unique in shape and size. We recommend purchasing an additional box of sauna stones to allow you to choose the highest quality of stone for fit, form, and function (Additional freight charges will apply).
- Requires wall-mounted time/temperature control
- Available in 240V/1PH operation or 208V/3Ph operation
- Industrial grade, serviceable heating elements
- Exceptionally large rock capacity
- UL listed
- Direct rock-to-heating element contact
- Designed, engineered, and made in Finland
- Dimensions: 16"W (406mm) x 11"D (279mm) x 24"H (609mm)
- 2-Year Warranty (Consumer Use)
-
Manufacturer's Note: Sauna heater stones are significant to the unit's safety. In order for the warranty to remain valid, the user is responsible for proper maintenance.
INCLUDES:
- Sauna heater
- Installation and operation manual
- 2-Year Warranty (Consumer Use)
SPECIFICATIONS:
| Kilowatt Rating (KW) | 6kW |
| Primary Fuel | Electric |
| Minimum Adjusted Cubic Feet | 170 |
| Maximum Adjusted Cubic Feet | 300 |
| Voltage | 240V/208V |
| Phase | 1PH/3PH |
| 240V, Single Phase Amperage | 25 Amps |
| 208V, 3-Phase Amperage | 16.7 Amps |
| Heater Weight | 40 lbs |
| Shipping Weight with Sauna Stones | 84 lbs |
| Width In Inches | 16" (406mm) |
| Depth In Inches | 11" (279mm) |
| Height In Inches | 24" (609mm) |
| Certification | UL |

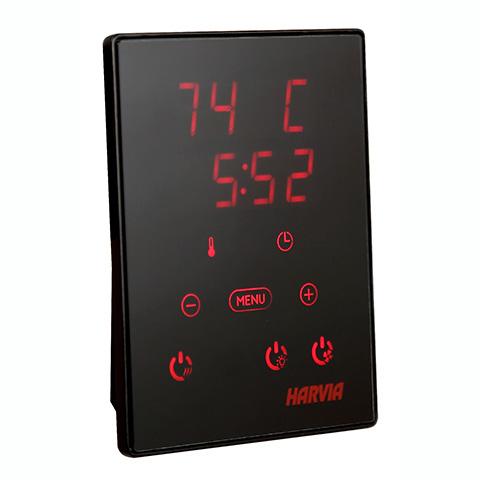

Xenio CX170 Control
The control panel of the Xenio control unit provides a modern and subtly stylish interface for controlling the heart of the sauna. The compact yet clear touch control panel can be surface-mounted in almost any space – sauna room, bathroom, dressing rooM. The control panel shows you when the sauna is at the right temperature for bathing.
FEATURES:
- Modern control unit that is precise and easy
- Stylish touch control panel
- Comprehensive set of functions: control operating time, temperature, lighting and fan from the control panel
- Control panel operating temperature range 104-194 F
- Surface of flush-mounted
- Installs inside or outside the sauna room
- Dimensions: 3.3"W x 0.9"D x 4.3"H
INCLUDES:
- Digital Control
- Data Cable
- Temperature Sensor
- Power Unit
- Installation and Operation Manual
- Limited Warranty
SPECIFICATIONS:
| Power unit supply Voltage | 400 V |
| Maximum output kilowatt | 17kW |
| Temperature adjustment range | 104-194F |
| Pre-setting time adjustment range | 0-12 Hours |
| Width | 3.3" |
| Depth | 0.9" |
| Height | 4.3" |

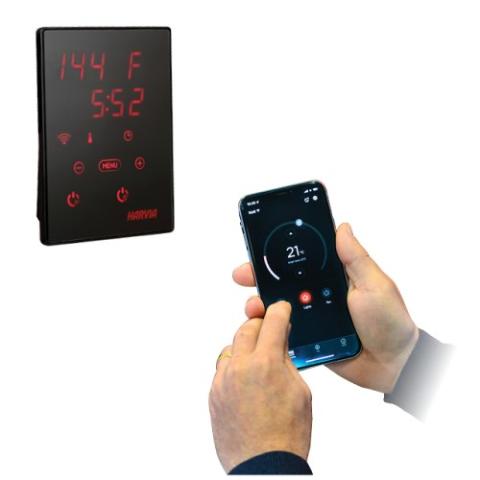

Harvia Xenio WiFi Remote Control
The modern and stylish Harvia Xenio WiFi is a sauna control panel that you can connect to the Harvia Xenio control unit. The control panel can be connected to a wireless LAN, after which you can enjoy wireless functions with the MyHarvia mobile application. Harvia Xenio WiFi enables a variety of installation options and can also be easily installed afterward to replace the old control panel. We recommend that you place the control panel near the sauna door as a surface installation or embedded into the wall. The control panel enables easy and clear sauna control. You can start and adjust the sauna temperature with the control panel buttons. The illuminated buttons on the display make it easy to use even in low lighting conditions. Follow your sauna’s status with the MyHarvia mobile application or on the control panel’s digital display. The door sensor of the sauna’s remote starting status can be activated straight from the control panel.
FEATURES:
- Replacement panel offering WIFI upgrade for Xenio control systems (Xenio control system sold separately)
- Easy installation
- Access to MyHarvia application
- Wall installation
- Compatible devices: SEE TECHNICAL TAB
- Dimensions: 3.34"W (84mm) x 0.9"D (22mm) x 4.3"H (109mm)

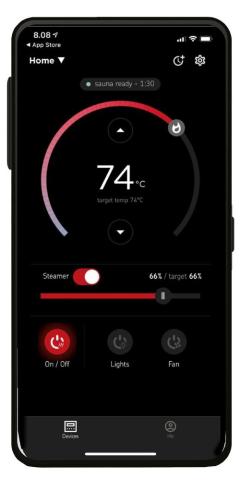

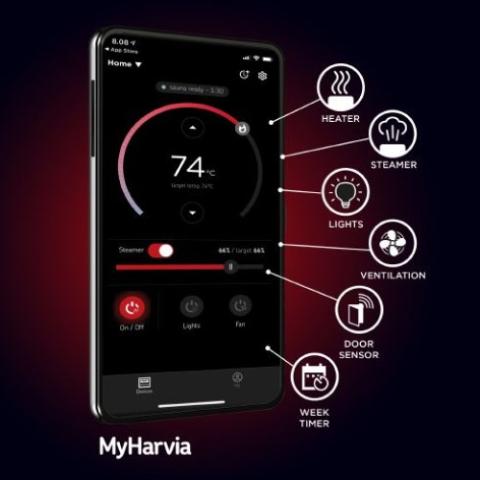

MyHarvia Application
- Control lighting
- Control of fan
- On-time feature
- Timed start feature
- Week Clock
- Safety device option
- Time zone selection
- Daylight saving selection
- Temperature adjustment
- Humidity adjustment
- Application not available in all countries
- Can be connected to unlimited amount of devices
- Access to control panel updates for the latest features and improved functions
INCLUDES:
- Xenio WIFI Control Remote Kit (WIFI panel only)
- Installation and Operation Material
SPECIFICATIONS:
| Model | Xenio WiFi Remote Control |
|---|---|
| Power Consumption | Peak 2W, average 600mW |
| Wifi Frequency Band | 2.4 GHz |
| Supply | 12-24VDC |
| Connection | 4-pin: +12VDC, GND, RS485 A+B |
| Electrical Frequency | 50/60Hz |
| Weight | 0.3lbs |
| Width | 3.34" (84mm) |
| Depth | 0.9" (22mm) |
| Height | 4.3" (109mm) |
| MyHarvia Application | |
|---|---|
| Temperature adjustment range | 104-194F |
| Humidity adjustment range | 20-80rH |
| On time | 1 hour |
| Control of lighting | On/Off button- Automation: ON when the heater turns on |
| Control of fan | On/Off button- Automation: ON when the heater turns off |
| Timed start adjustment range | 0-12hr/For one heating/Based on calendar |
| Weekly clock | Max 8 programs |
| Safety device option | Safety switch (Optional) |
| Time zone selcetion | Yes |
| Daylight savings selection | Yes |
